Spiral Heat Exchanger
Heat exchanger downtime getting you down?
1,Does your process involve fouling fluids, sludges, emulsions, slurries, fibres or particle loaded liquids?
2,Do your shell-and-tube heat exchangers suffer from fouling and clogging, resulting in costly downtime and hugemaintenance bills that keep youawake at night?
We have the solution:
Already installed in industrial plants worldwide for liquid-to-liquid and two phase duties, BOYU spiral heat exchangers are real tough problem solvers that do not suffer from fouling and clogging - in fact, they almost never break down. As a result, maintenance costs are impressively low.
Spiral plate heat exchanger is one kind of heat transmission equipment with higher heat transmission efficiency through spiral channel for heat transmission. It is widely used in chemical industry.
Its working principal as the following: when two different fluid flow to the heat exchanger channels from both sides of tube wall; Two kinds of fluid contact upstream separated by tube wall. Hot fluid will transfer heat to tube wall, then to cold fluid to realize the structural characteristics. The fluid will reach turbulent flow condition at lower speed so it enhances the heat transmission. It is made of plate so it can reduce cost for large production.
Spiral Heat Exchanger
Specification:
Spiral plate heat exchanger is
one kind of heat transmission equipment with higher heat transmission
efficiency through spiral channel for heat transmission.
It is widely used in chemical industry.
Technical Parameter
Specification
Technical Parameter
Heat exchanging area(㎡)
Type
Flow Path
Flow path (Ⅰ)
Flow Path
（Ⅱ）
Media
Type
F=45
Upright
,
Horizontal
Elution benzene，
Steamed ammonia proces
Design Pressure(Mpa)
1.0
0.44
F=60
Working Pressure(Mpa)
0.8
0.4
F=90
Design Temperature(Mpa)
100-80
70-150
Lean oil, Rich oil
F=120
70-100
40-55
Lean oil, Water
F=150
50-80
40-55
Lean/rich ammonium hydroxide
F=200
Working Temperature(Mpa)
90-170
60-120
Lean Oil, Water
F=250
90-60
30-45
Lean oil, Rich oil, Water
F=280
45-70
30-45
Lean oil, Rich oil
Its working principal as the following: when two different fluid flow to the heat exchanger channels from both sides of tube wall; Two kinds of fluid contact upstream separated by tube wall. Hot fluid will transfer heat to tube wall, then to cold fluid to realize the structural characteristics. The fluid will reach turbulent flow condition at lower speed so it enhances the heat transmission. It is made of plate so it can reduce cost for large production.

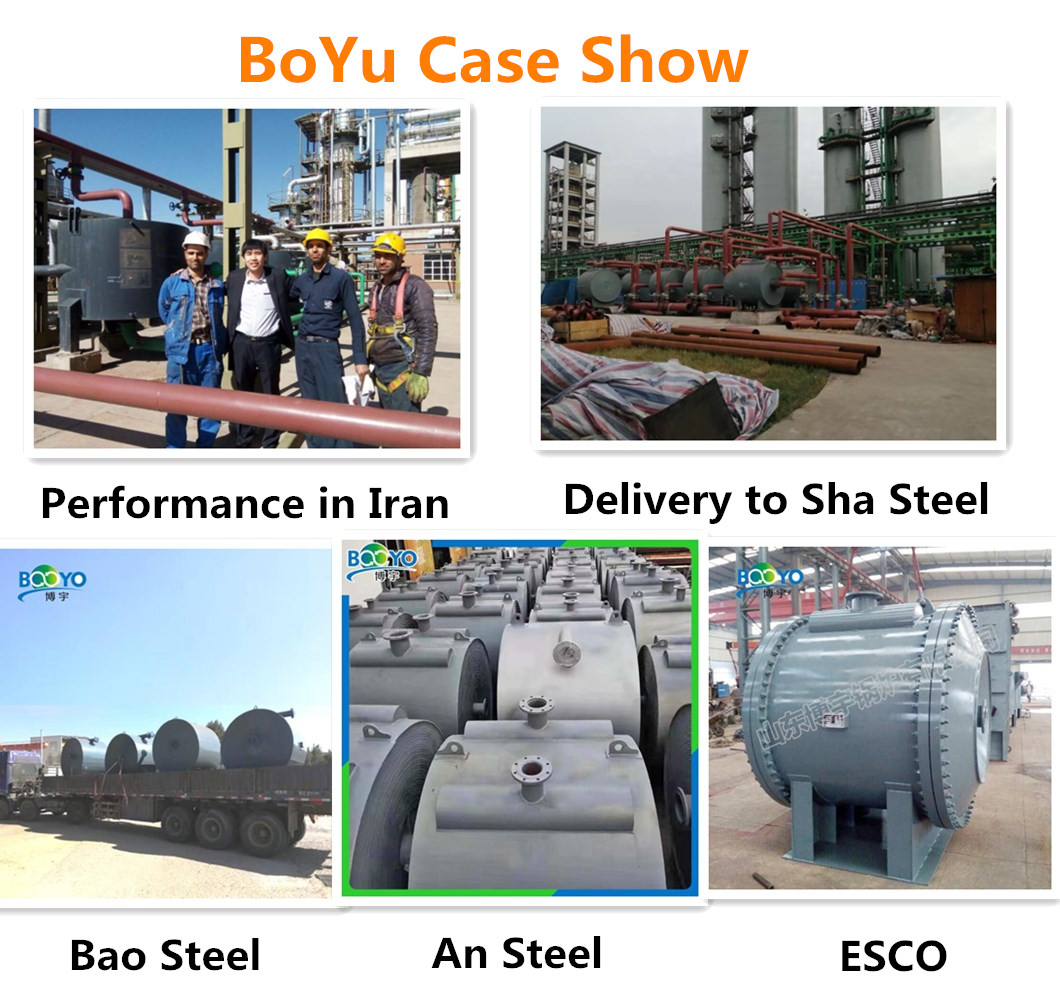

Our References:
Over the past ten years, the products of Boyu have been sold well in 31 provinces and autonomous regions in China,
and the main customers are ACRE, CNCEC, SDM, Baosteel Engineering, Jigang International Engineering, Baowu Group, AnSteel Group, Shagang Group, Shenhua Group and so on.
At present, the company's products have been exported to India, Indonesia, Iran, Vietnam, Peru and other markets abroad.
Becoming a high-quality supplier covering the global market will be the next target of Boyu people.
BoYu Boiler Our Honor:
The company has ISO9001, SGS certification, grade A Boiler certificate, mechanical and electrical installation qualification certificate, pressure vessel A1, A2, A3 and other certificates, with all the qualifications for design, production and installation, ranking in the front of the industry. And it has been "China's Top 50 Cluster Brands" "Provincial Science and Technology Park" and other honors.

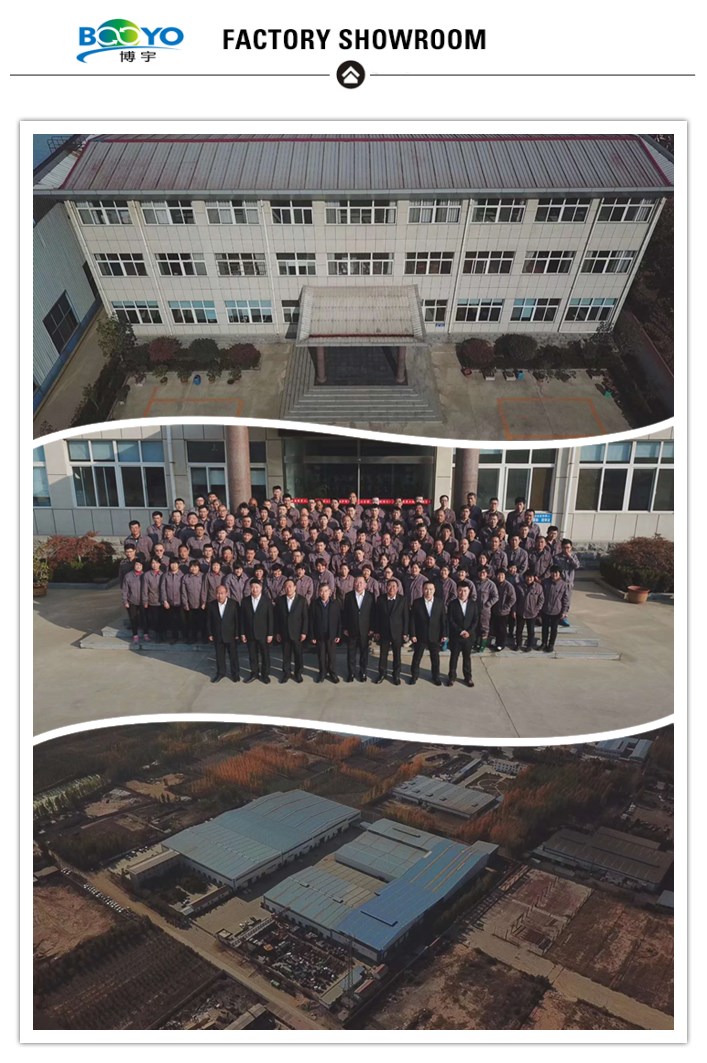

Our Factory
Shandong Boyu have 400 emplyees, with 100 technicians .We manufacture 1000 sets spiral heat exchangers per year.
We established more than 50 nationwide service outlets, with an elite sales and service team of over 100 people, providing customers with timely and thoughtful services at any time with the fastest response speed.
